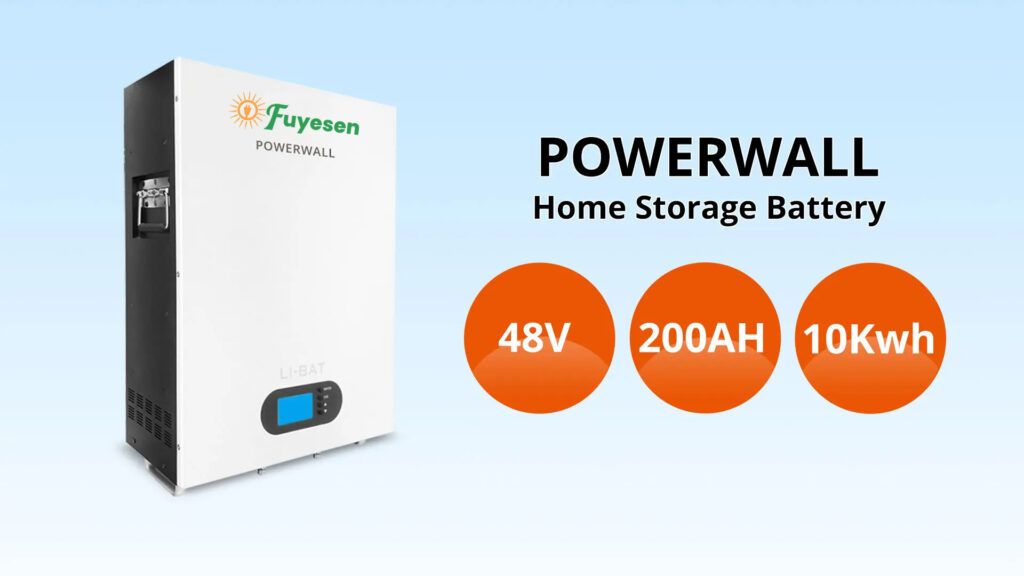

| Model | FYS-L2 |
| Nominal Voltage (V) | 48V |
| Battery Capacity (AH) | 200AH |
| Output Power Range | 10 kWh |
| Dimension (L*W*H) | 465*682*246（mm） |
| Weight | 88kg |
| Communication Port | CAN, RS485,Can be customizable |
| Protection Class | IP20 |
| Nominal Voltage | 48V |
| Nominal capacity | 210AH |
| Operating voltage range | 42-55(V) |
| Standard discharge current | 40A |
| Maximum discharge current | 100A |
| Applicable temperature | -30℃~60℃(Recommended 10℃~35℃) |
| Allowable humidity range | 0~85% RH |
| Storage temperature | -20℃~65℃(Recommended10℃~35℃) |
| Cooling method | natural air cooling |
Battery Function
1.One-key switch machine, front wiring.
2.At a glance, you can see the state of the battery
3.Communication interface with two RS485 and one CAN,can be customizable.
Inside The Battery
1.Top garde A cell
2.Standard cycle life is more than 6000 times
3.Metals, green and environmentally friendly
4.Designed to last over 10 years
Battery Details
1.Dustproof and waterproof cover on top of the battery
2.Standard configuration with LCD display, real time knowing battery status
3.Lockable, silent casters on the bottom of the battery.
